1.Red cdopper fitting and cast brase fittings are fisted elos. 2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001 3.Other Coupling Reducer CC standard products can also be ordered. 4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa. 5.TEE dimension sequence D1*D2*D3.

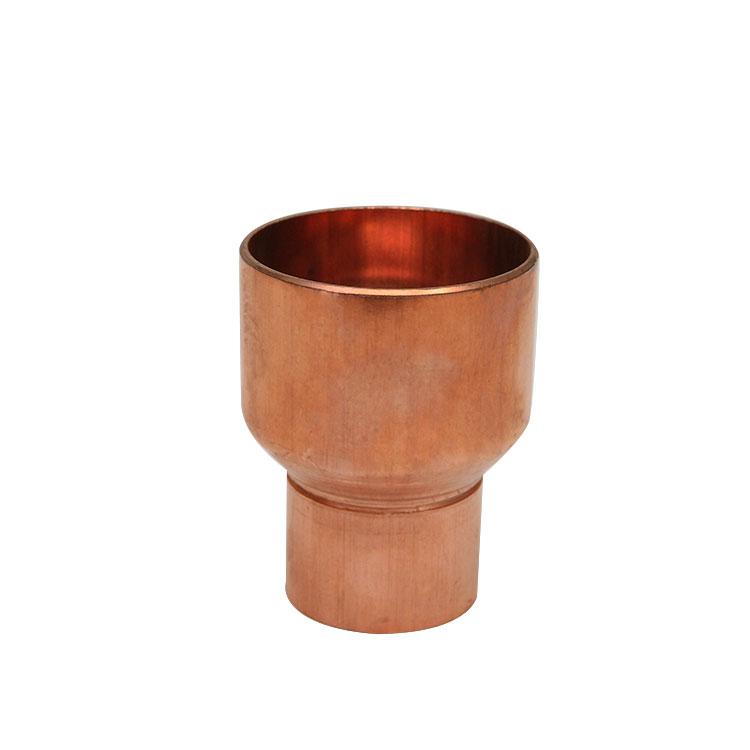

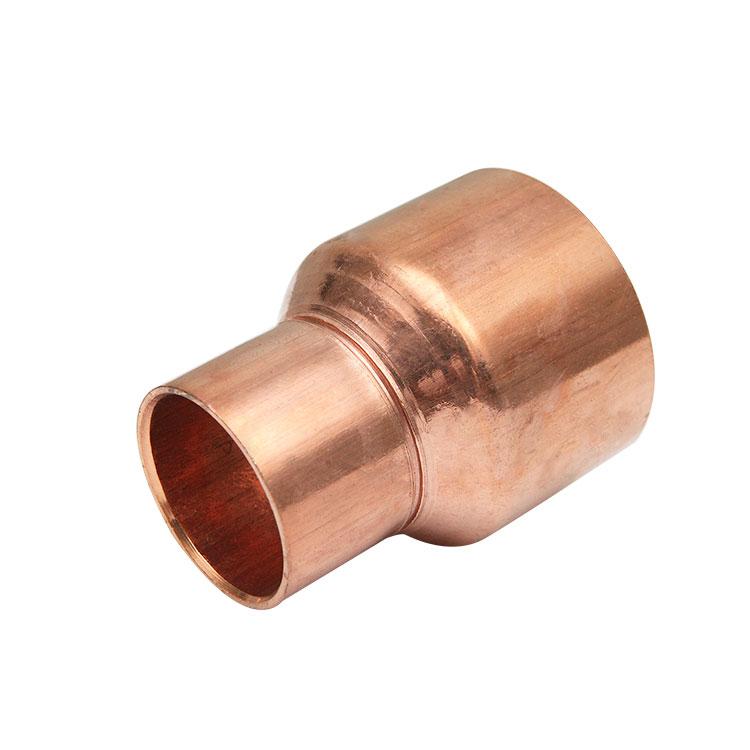

Coupling Reducer CC
| ITEM# | NOMINAL SIZE | BOX SIZE | PCS/BAG | BAG/CTN | |
| 1 | 2031 | 3/4*1/3" | 20*24*24.5 | 20 | 10 |
| 2 | 2032 | 1*1/2" | 24*21*24.5 | 25 | 10 |
| 3 | 2033 | 1*3/4" | 21*21*24.5 | 25 | 10 |
| 4 | 2072 | 1¼*1/2" | 29*24*24.5 | 10 | 20 |
| 5 | 2034 | 1¼*3/4" | 29*24*24.5 | 10 | 20 |
| 6 | 2035 | 1¼*1" | 29*24*24.5 | 10 | 20 |
| 7 | 2073 | 1¼*1/2" | 24*21*24.5 | 10 | 10 |
| 8 | 2039 | 1½*1/2" | 29*24*24.5 | 10 | 15 |
| 9 | 2040 | 1½"*3/4" | 24*21*24.5 | 10 | 10 |
| 10 | 2036 | 1½*1" | 24*21*24.5 | 10 | 10 |
| 11 | 2070 | 2*3/4" | 41*24*24.5 | 5 | 20 |
| 12 | 2071 | 2*1" | 41*24*24.5 | 5 | 20 |
| 13 | 2037 | 2*1¼" | 41*24*24.5 | 5 | 20 |
| 14 | 2038 | 2*1½" | 41*24*24.5 | 5 | 20 |
| 15 | 2074 | 2½*2" | 41*24*24.5 | 2 | 30 |
| 16 | 2075 | 3*2" | 29*24*24.5 | 2 | 18 |
| 17 | 2076 | 3*2½" | 29*24*24.5 | 2 | 18 |
| 18 | 2077 | 4*2" | |||
| 19 | 2078 | 4*2½" | |||
| 20 | 2079 | 4*3" | |||
| 21 | 2084 | 5/8*1/2" | 24*21*24.5 | 50 | 10 |
| 22 | 2085 | 3/4*5/8" | 29*24*24.5 | 50 | 10 |
| 23 | 2086 | 2*1/2" | 41*24*24.5 | 5 | 20 |
| 24 | 2087 | 1*5/8" | 24*21*24.5 | 25 | 10 |
| 25 | 2080 | 2½*1½" | 41*24*24.5 | 2 | 30 |
Coupling Reducer CC Notes:
1.Red cdopper fitting and cast brase fittings are fisted elos.
2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001
3.Other standard products can also be ordered.
4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa.
5.TEE dimension sequence D1*D2*D3.
