1.Red cdopper fitting and cast brase fittings are fisted elos. 2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001 3.Other 90° Street Elebow FTG*C standard products can also be ordered. 4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa. 5.TEE dimension sequence D1*D2*D3.

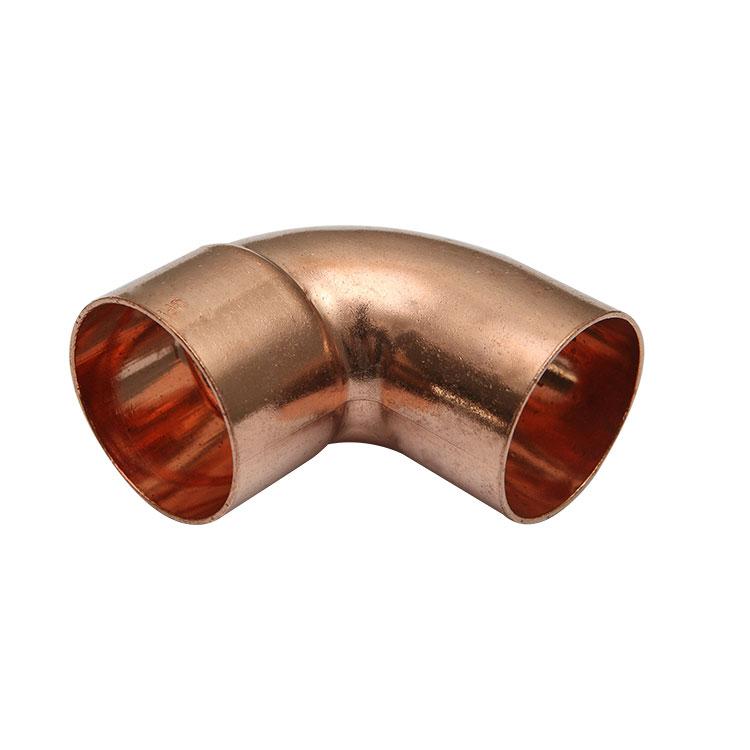

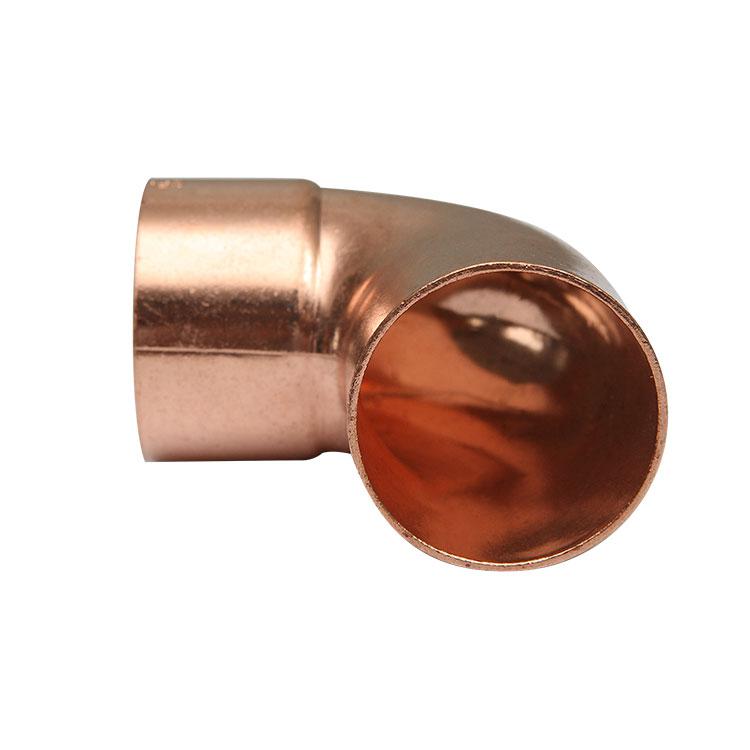

90° Street Elebow FTG*C
ITEM# | NOMINAL SIZE | BOX SIZE | PCS/BAG | BAG/CTN | |
1 | 2581 | 1/4" | 24*21*24.5 | 10 | 20 |
2 | 2583 | 3/8" | 24*21*24.5 | 50 | 20 |
3 | 2585 | 5/8" | 24*21*24.5 | 25 | 12 |
4 | 9011 | 1/2" | 24*21*24.5 | 50 | 10 |
5 | 9012 | 3/4" | 29*24*24.5 | 25 | 10 |
6 | 9013 | 1" | 41*24*24.5 | 10 | 20 |
7 | 9014 | 1 1/4" | 29*24*24.5 | 10 | 10 |
8 | 9015 | 1 1/2" | 48*27*24.5 | 10 | 10 |
9 | 9016 | 2" | 48*27*24.5 | 5 | 10 |
10 | 9017 | 2 1/2" | 41*24*24.5 | 1 | 20 |
11 | 9018 | 3" | 44*29*30 | 1 | 20 |
12 | 9019 | 4" | 47*38*22 | 1 | 8 |
90° Street Elebow FTG*C Notes:
1.Red cdopper fitting and cast brase fittings are fisted elos.
2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001
3.Other standard products can also be ordered.
4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa.
5.TEE dimension sequence D1*D2*D3.
