1.Red cdopper fitting and cast brase fittings are fisted elos. 2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001 3.Other 90° Long Turn Elebow C*C standard products can also be ordered. 4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa. 5.TEE dimension sequence D1*D2*D3.

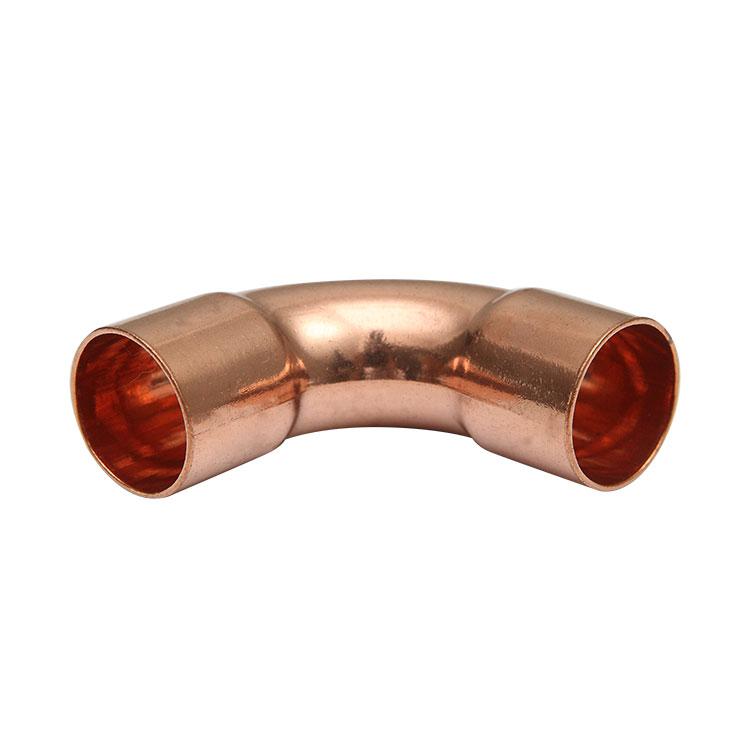

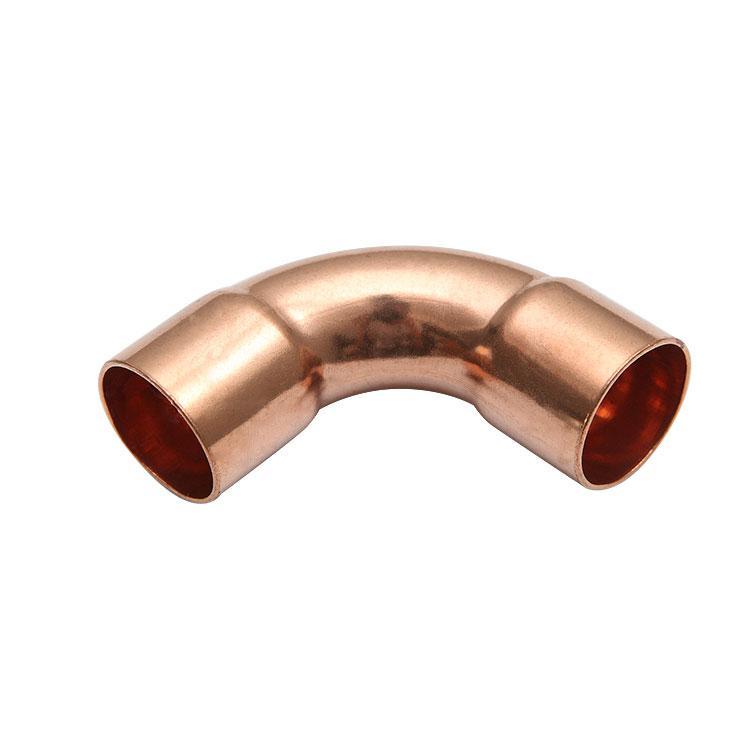

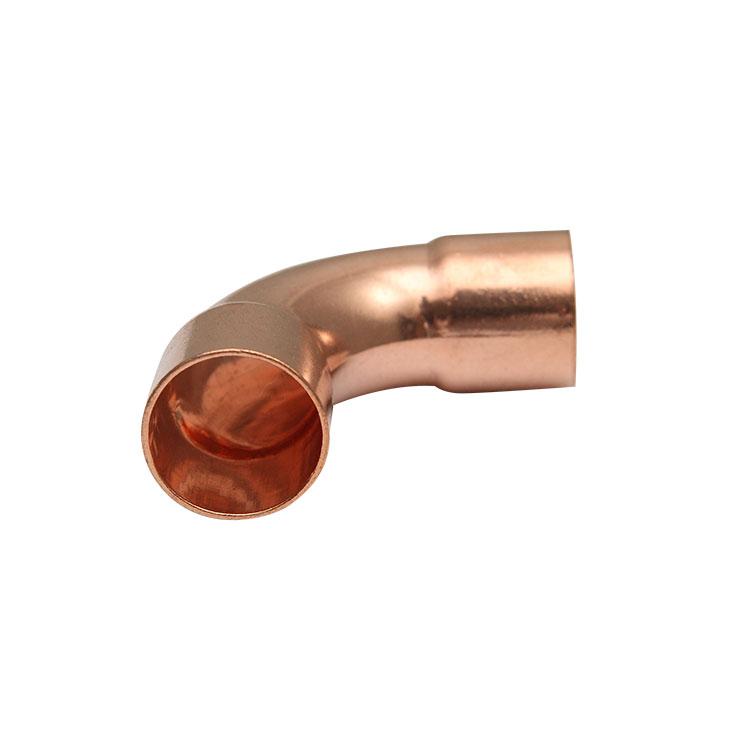

90° Long Turn Elebow C*C
| ITEM# | NOMINAL SIZE | BOX SIZE | PCS/BAG | BAG/CTN | |
| 1 | 2561 | 1/4" | 24*21*24.5 | 100 | 15 |
| 2 | 2563 | 3/8" | 24*21*24.5 | 100 | 10 |
| 3 | 2565 | 5/8" | 24*21*24.5 | 25 | 10 |
| 4 | 9021 | 1/2" | 29*24*24.5 | 50 | 10 |
| 5 | 9022 | 3/4" | 41*24*24.5 | 25 | 12 |
| 6 | 9023 | 1" | 29*24*24.5 | 5 | 20 |
| 7 | 9024 | 1 1/4" | 41*24*24.5 | 5 | 20 |
| 8 | 9025 | 1 1/2" | 48*27*24.5 | 5 | 12 |
| 9 | 9026 | 2" | 48*27*24.5 | 5 | 7 |
90° Long Turn Elebow C*C Notes:
1.Red cdopper fitting and cast brase fittings are fisted elos.
2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001
3.Other standard products can also be ordered.
4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa.
5.TEE dimension sequence D1*D2*D3.
