1.Red cdopper fitting and cast brase fittings are fisted elos. 2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001 3.Other Copper Tube Strap standard products can also be ordered. 4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa. 5.TEE dimension sequence D1*D2*D3.

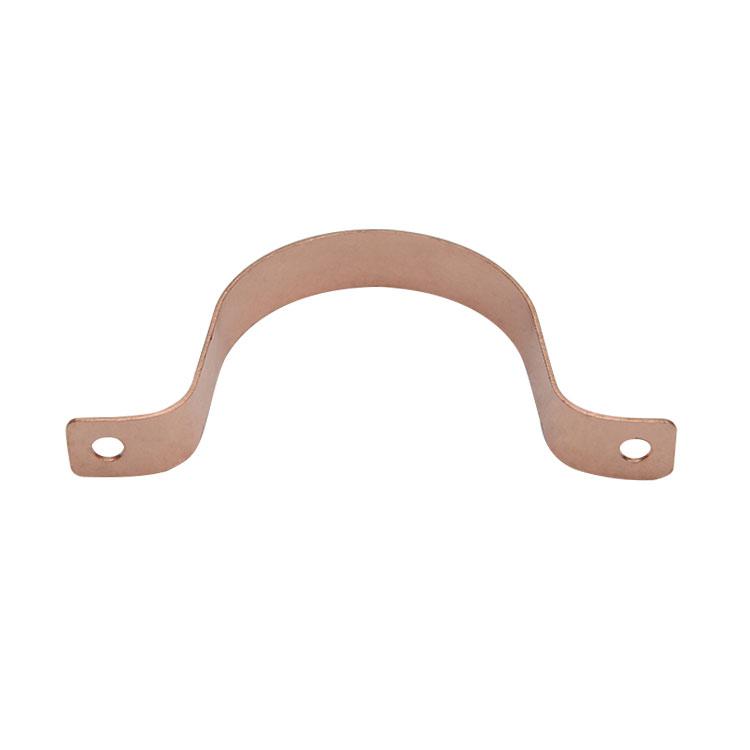

Copper Tube Strap
| ITEM# | NOMINAL SIZE | BOX SIZE | PCS/BAG | BAG/CTN | |
| 1 | 9051 | 1/2"*1/2"Wide | 24*21*24.5 | 100 | 25 |
| 2 | 9052 | 3/4"*1/2"Wide | 29*24*24.5 | 100 | 20 |
| 3 | 9053 | 1"*1/2"Wide | 41*24*24.5 | 100 | 15 |
| 4 | 9054 | 11/4"*1/2"Wide | 29*24*24.5 | 100 | 10 |
| 5 | 9055 | 11/2"*1/2Wide | 41*24*24.5 | 100 | 10 |
| 6 | 9056 | 2"*1/2"Wide | 41*24*24.5 | 100 | 10 |
| 7 | 9054-W | 1 1/4"*1"Wide | 29*24*24.5 | 100 | 10 |
| 8 | 9055-W | 1 1/2"*1"Wide | 41*24*24.5 | 100 | 10 |
| 9 | 9056-W | 2"*1"Wide | 41*24*24.5 | 100 | 10 |
Copper Tube Strap Notes:
1.Red cdopper fitting and cast brase fittings are fisted elos.
2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001
3.Other standard products can also be ordered.
4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa.
5.TEE dimension sequence D1*D2*D3.
