1.Red cdopper fitting and cast brase fittings are fisted elos. 2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001 3.Other Coupling With Dimpled Stop C*C*C standard products can also be ordered. 4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa. 5.TEE dimension sequence D1*D2*D3.

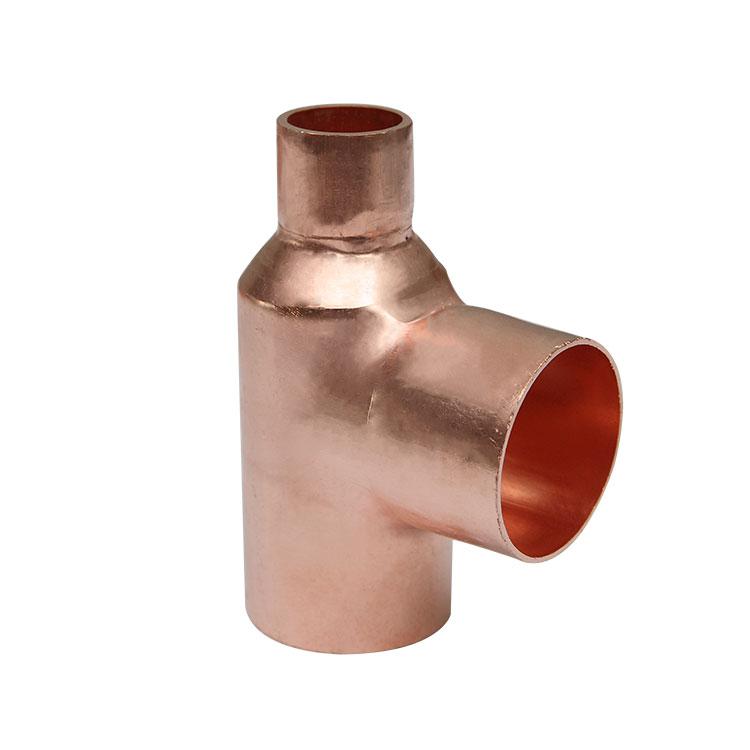

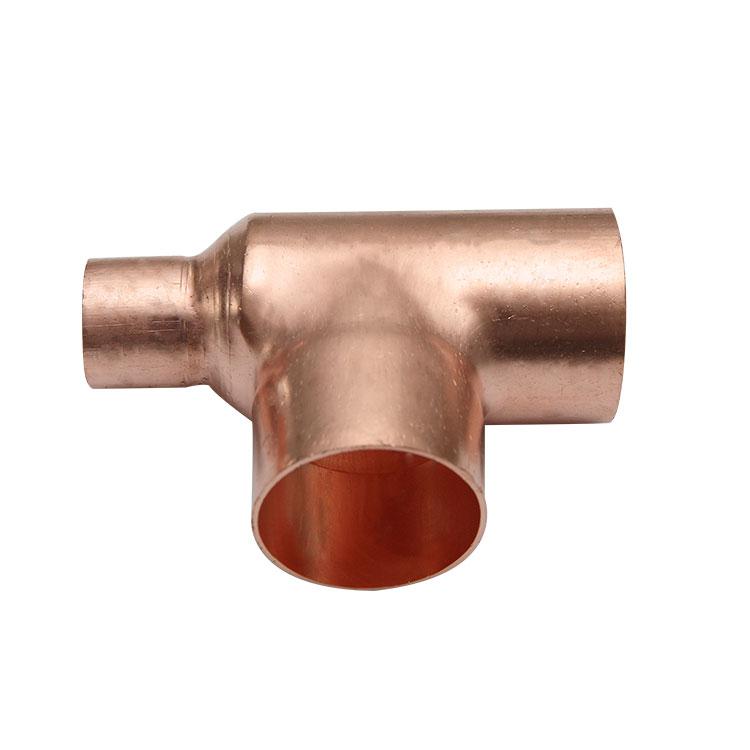

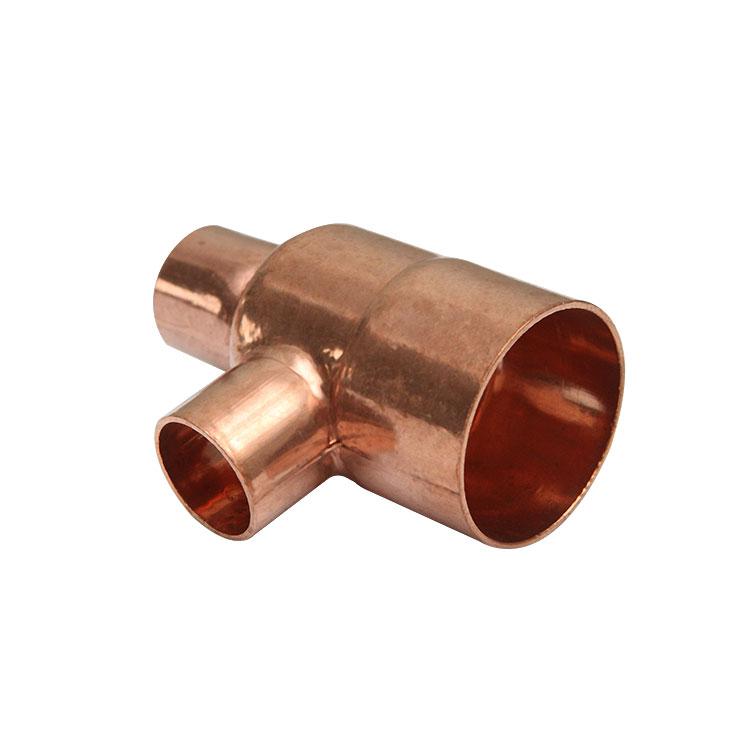

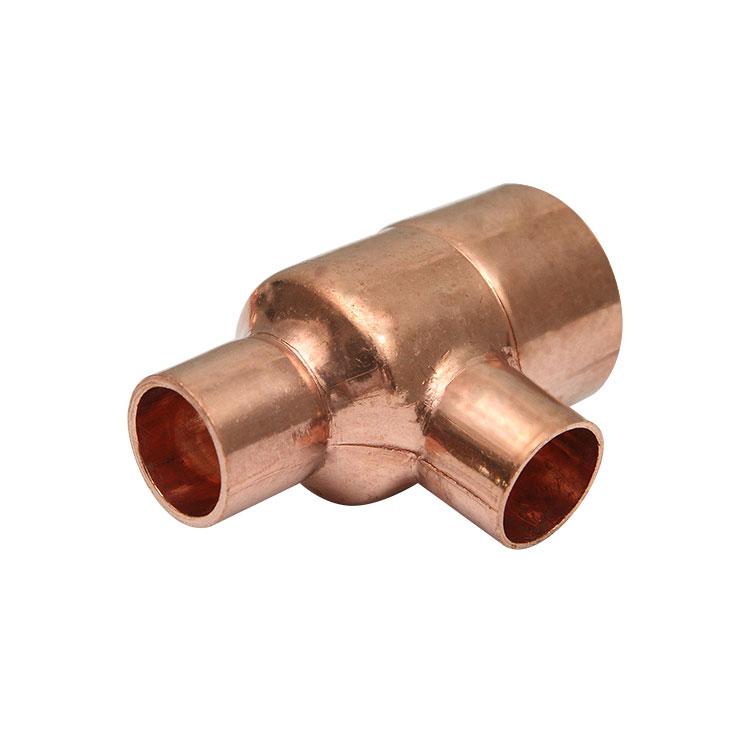

Coupling With Dimpled Stop C*C*C
ITEM# | NOMINAL SIZE | BOX SIZE | PCS/BAG | BAG/CTN | |
1 | 3101 | 3/4"*3/4"*1/2" | 41*24*24.5 | 25 | 300 |
2 | 3102 | 3/4"*1/2"*1/2" | 29*24*24.5 | 25 | 300 |
3 | 3103 | 1"*3/4"*3/4" | 48*27*24.5 | 25 | 200 |
4 | 3104 | 3/4"*3/4"*1" | 41*24*24.5 | 25 | 200 |
5 | 3105 | 1"*1/2"*3/4" | 41*24*24.5 | 25 | 200 |
6 | 3106 | 1/2"*1/2"*1" | 41*24*24.5 | 25 | 200 |
7 | 3107 | 1"*3/4"*1/2" | 41*24*24.5 | 25 | 200 |
8 | 3108 | 1"*3/4"*1" | 48*27*24.5 | 25 | 200 |
9 | 3109 | 3/4"*1/2"*3/4" | 41*24*24.5 | 25 | 250 |
10 | 3110 | 1/2"*1/2"*3/4" | 29*24*24.5 | 25 | 300 |
11 | 3111 | 1"*1/2"*1/2" | 41*24*24.5 | 25 | 250 |
12 | 3112 | 1" *1" *1/2" | 41*24*24.5 | 25 | 200 |
13 | 3113 | 1" *1" *3/4" | 48*27*24.5 | 25 | 200 |
14 | 3114 | 1"*1/2"*1" | 48*27*24.5 | 25 | 200 |
15 | 3115 | 1¼"*1¼"*1/2" | 29*24*24.5 | 10 | 100 |
16 | 3116 | 1¼"*1¼"*3/4" | 41*24*24.5 | 10 | 100 |
17 | 3117 | 1¼"*1¼"*1" | 41*24*24.5 | 10 | 100 |
18 | 3118 | 1¼"*1"*1" | 41*24*24.5 | 10 | 100 |
19 | 3119 | 1¼"*1"*3/4" | 41*24*24.5 | 10 | 100 |
20 | 3120 | 1¼"*1"*1/2" | 29*24*24.5 | 10 | 100 |
21 | 3121 | 1½"*1½"*1¼" | 41*24*24.5 | 5 | 60 |
22 | 3122 | 1½"*1½"*1/2" | 41*24*24.5 | 5 | 100 |
23 | 3123 | 1½"*1½"*3/4" | 48*27*24.5 | 5 | 100 |
24 | 3124 | 1½"*1½"*1" | 48*27*24.5 | 5 | 100 |
25 | 3125 | 2"*2"*1¼" | 41*24*24.5 | 5 | 40 |
26 | 3126 | 2"*2"*1½" | 48*27*24.5 | 5 | 40 |
27 | 3127 | 2"*2"*1" | 48*27*24.5 | 5 | 50 |
28 | 3128 | 2"*2"*3/4" | 48*27*24.5 | 5 | 50 |
29 | 3129 | 2"*2"*1/2" | 48*27*24.5 | 5 | 60 |
30 | 3130 | 1¼"*3/4"*1¼" | 48*27*24.5 | 10 | 100 |
31 | 3131 | 3"*3"*2" | 48*27*24.5 | 1 | 10 |
32 | 3132 | 4"*4"*2" | 47*38*22 | 1 | 10 |
33 | 3133 | 1¼"*1/2"*1/2" | 29*24*24.5 | 10 | 100 |
34 | 3134 | 1¼"*1/2"*1¼" | 41*24*24.5 | 10 | 100 |
35 | 3135 | 1¼"*3/4"*3/4" | 29*24*24.5 | 10 | 100 |
36 | 3136 | 1¼"*3/4"*1" | 41*24*24.5 | 10 | 100 |
37 | 3137 | 1¼"*3/4"*1/2" | 29*24*24.5 | 10 | 100 |
38 | 3138 | 1¼"*1"*1¼" | 48*27*24.5 | 10 | 100 |
39 | 3140 | 1½"*3/4"*1/2" | 41*24*24.5 | 10 | 100 |
40 | 3141 | 1½"*3/4"*3/4" | 41*24*24.5 | 10 | 100 |
41 | 3147 | 1½"*1¼"*1" | 29*24*24.5 | 5 | 60 |
42 | 3150 | 3"*3"*2½" | 44*29*20 | 1 | 10 |
43 | 3151 | 4"*4"*2½" | 37*38*28 | 1 | 10 |
44 | 3152 | 4"*4"*2½" | 37*38*28 | 1 | 10 |
45 | 3153 | 2½"*2½"*1½" | 41*24*24.5 | 1 | 20 |
46 | 3154 | 2½"*2½"*2" | 41*24*24.5 | 1 | 20 |
47 | 3155 | 2"*1½"*1½" | 41*24*24.5 | 5 | 50 |
48 | 3156 | 2"*1½"*3/4" | 48*27*24.5 | 5 | 60 |
49 | 3157 | 2"*1½"*1" | 48*27*24.5 | 5 | 60 |
50 | 3158 | 2"*1½"*1¼" | 48*27*24.5 | 5 | 50 |
51 | 3159 | 2"*1½"*1½" | 48*27*24.5 | 5 | 50 |
52 | 3160 | 2"*1½"*2" | 48*27*24.5 | 5 | 35 |
53 | 3161 | 1½"*1¼"*1½" | 48*27*24.5 | 5 | 100 |
54 | 3162 | 1½"*3/4"*1" | 48*27*24.5 | 10 | 100 |
55 | 3164 | ½"*3/4"*1½" | 48*27*24.5 | 5 | 90 |
56 | 3165 | 1½"*3/4"*1¼" | 48*27*24.5 | 5 | 100 |
57 | 3166 | 1½"*1"*1/2" | 48*27*24.5 | 5 | 90 |
58 | 3167 | 2"*1¼"*1" | 48*27*24.5 | 5 | 50 |
59 | 3168 | 2"*1¼"*1¼" | 48*27*24.5 | 5 | 50 |
60 | 3169 | 1½"*3/4"*1¼" | 48*27*24.5 | 5 | 100 |
61 | 3143 | 1½"*1"*3/4" | 48*27*24.5 | 10 | 100 |
62 | 3148 | 1½"*1¼"*1¼" | 41*24*24.5 | 5 | 60 |
63 | 3149 | 3"*2"*2" | 41*24*24.5 | 1 | 15 |
Coupling With Dimpled Stop C*C*C Notes:
1.Red cdopper fitting and cast brase fittings are fisted elos.
2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001
3.Other standard products can also be ordered.
4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa.
5.TEE dimension sequence D1*D2*D3.
