1.Red cdopper fitting and cast brase fittings are fisted elos. 2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001 3.Other Fitting Reducer FTG*C standard products can also be ordered. 4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa. 5.TEE dimension sequence D1*D2*D3.

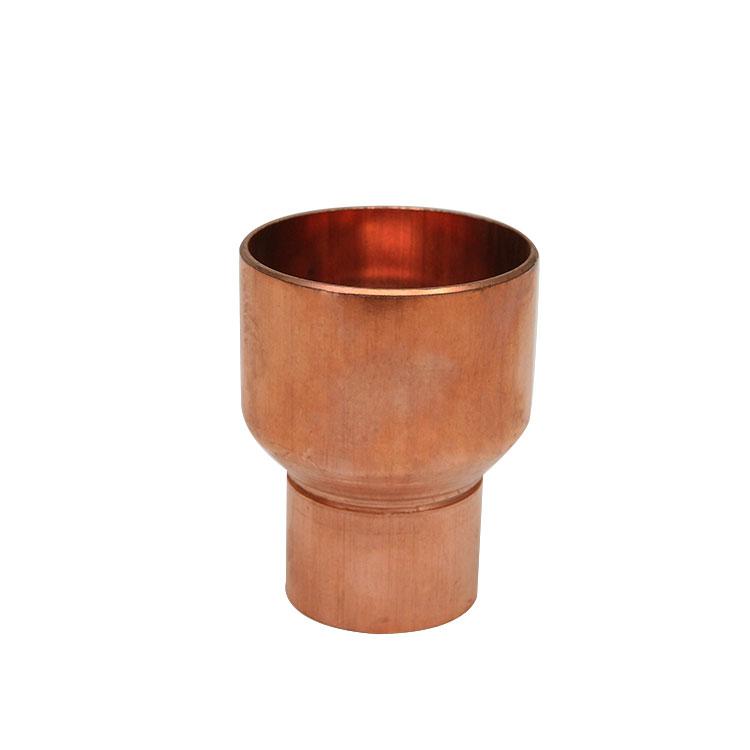

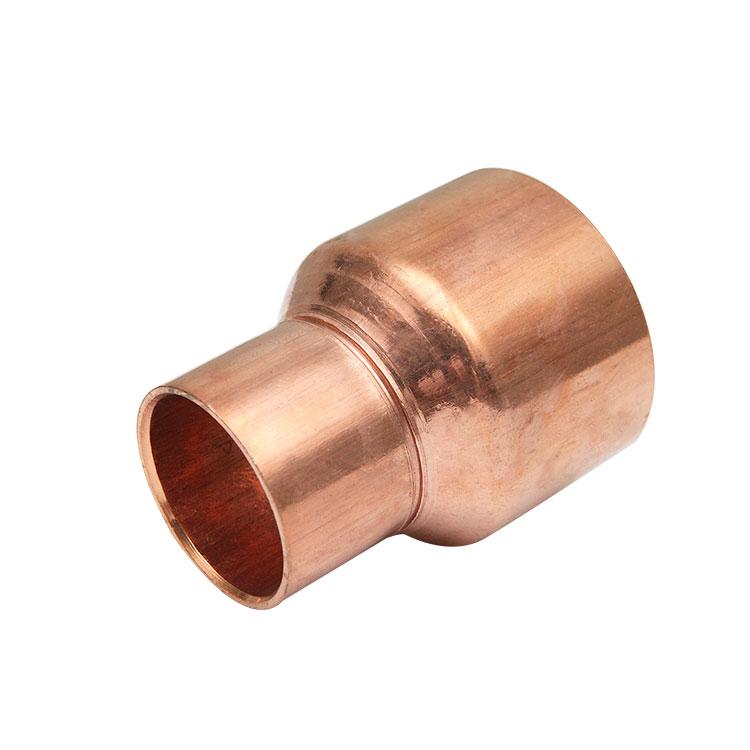

Fitting Reducer FTG*C
| ITEM# | NOMINAL SIZE | BOX SIZE | PCS/BAG | BAG/CTN | |
| 1 | 2040 | 11/2*1/2 | 29*24*24.5 | 10 | 20 |
| 2 | 2042 | 3/4*1/2" | 24*21*24.5 | 50 | 10 |
| 3 | 2043 | 1*1/2" | 24*21*24.5 | 25 | 10 |
| 4 | 2044 | 1*3/4" | 24*21*24.5 | 25 | 10 |
| 5 | 2045 | 1 1/4*3/4" | 29*24*24.5 | 10 | 25 |
| 6 | 2046 | 1 1/4*1" | 29*24*24.6 | 10 | 15 |
| 7 | 2047 | 1 1/2*3/4" | 29*24*24.7 | 10 | 20 |
| 8 | 2048 | 1 1/2*1" | 29*24*24.8 | 10 | 15 |
| 9 | 2049 | 1 1/2*1 1/4" | 24*21*24.5 | 10 | 10 |
| 10 | 2052 | 2*3/4" | 29*24*24.8 | 5 | 20 |
| 11 | 2053 | 2*1" | 29*24*24.9 | 5 | 20 |
| 12 | 2050 | 2*1 1/4" | 29*24*24.10 | 5 | 20 |
| 13 | 2051 | 2*1 1/2" | 29*24*24.11 | 5 | 20 |
| 14 | 2054 | 2½"*2" | 29*24*24.12 | 2 | 25 |
| 15 | 2055 | 3"*2" | 29*24*24.13 | 2 | 18 |
| 16 | 2056 | 3"*2½" | 29*24*24.14 | 2 | 18 |
| 17 | 2057 | 4"*2" | |||
| 18 | 2058 | 4"*2½" | |||
| 19 | 2059 | 4*3 | 41*24*24.5 | 1 | 20 |
| 20 | 2060 | 1 ¼*1/2 | 24*21*24.5 | 10 | 20 |
| 21 | 2062 | 2"*1½" | 29*24*24.5 | 5 | 20 |
| 22 | 2108 | 2½"*1½" | 41*24*24.5 | 2 | 30 |
Fitting Reducer FTG*C Notes:
1.Red cdopper fitting and cast brase fittings are fisted elos.
2.Red copper fittings are fisted in Americal stadard ASME B16.22-2001
3.Other standard products can also be ordered.
4.Wuth standing Pressure:1.6MPa. Some up to 2.0MPa.
5.TEE dimension sequence D1*D2*D3.
